Worker進程時不時busy，strace頻繁出現rt_sigreturn

Wakada 更新于2025-05-03

問題描述

1、使用GatewayWorker版本是v3.0.13，PHP7.4；
2、目前有7臺Gateway服務器，每臺規格是32C32G，每臺Gateway是96進程數，7臺Worker服務器，規格是16C16G，Worker是32進程數；
3、高峰期時，所有Worker進程都出現busy，那會沒有把Log截取下來，后面就直接升級機器配置；

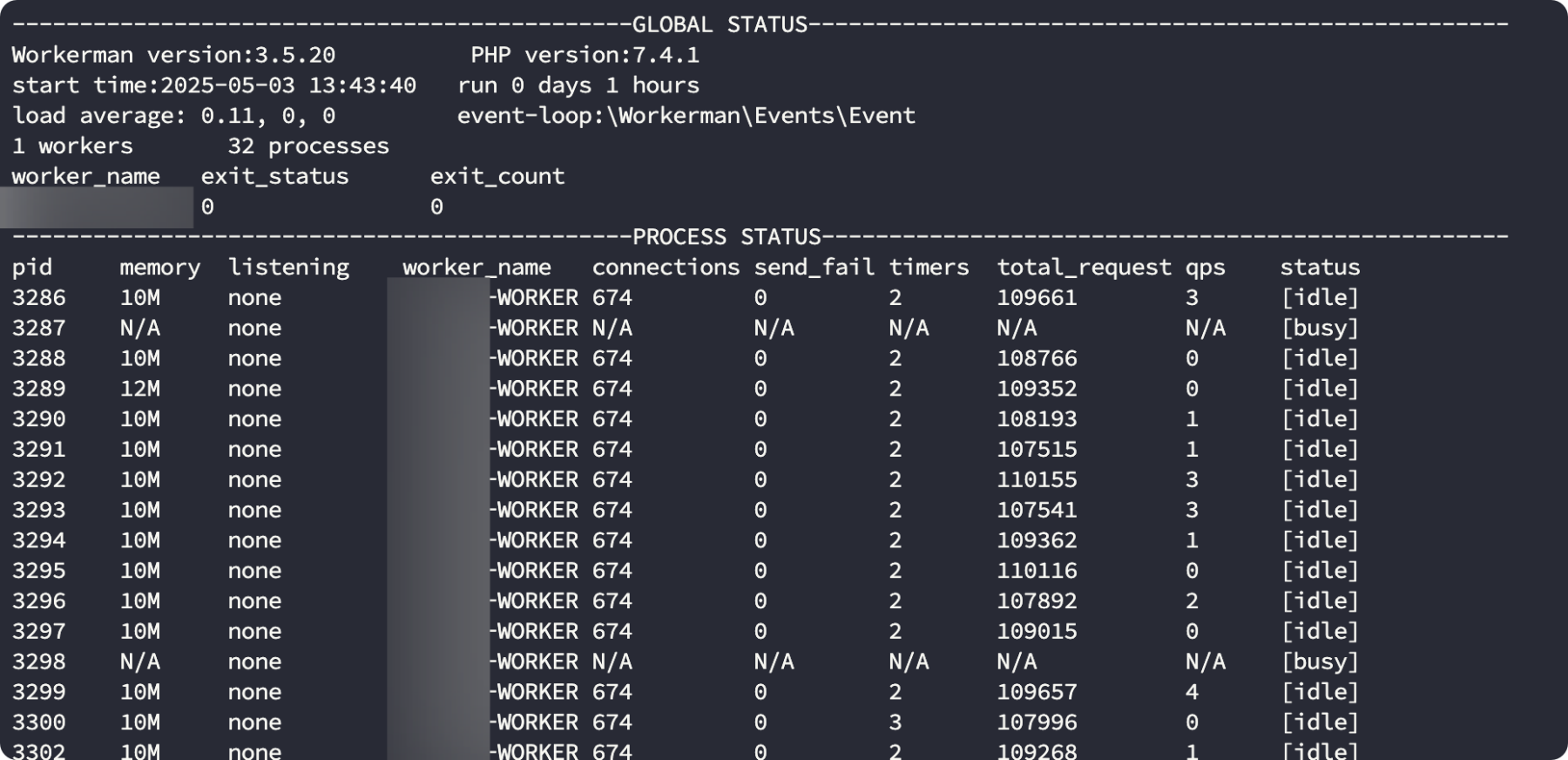

4、升級后，status -d，偶爾會出現busy，大概4秒后就消失，strace -p 結果如下，這類busy是因?yàn)橛薪K端開了 status -d導致嗎？

報錯信息

14:50:34.311724 close(1022)             = 0 <0.000054>
14:50:34.311908 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <0.167065>
14:50:34.479180 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:34.479303 write(6, "\f", 1)       = 1 <0.000042>
14:50:34.479420 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000053>
14:50:34.479629 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.000244>
14:50:35.480005 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:35.480083 write(6, "\f", 1)       = 1 <0.000035>
14:50:35.480205 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000017>
14:50:35.480328 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.000339>
14:50:36.480777 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:36.480845 write(6, "\f", 1)       = 1 <0.000022>
14:50:36.480938 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000011>
14:50:36.481058 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.000419>
14:50:37.481553 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:37.481605 write(6, "\f", 1)       = 1 <0.000006>
14:50:37.481647 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000004>
14:50:37.481753 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.000506>
14:50:38.482340 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:38.482411 write(6, "\f", 1)       = 1 <0.000010>
14:50:38.482464 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000018>
14:50:38.482618 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.000276>
14:50:39.482990 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
14:50:39.483063 write(6, "\f", 1)       = 1 <0.000011>
14:50:39.483136 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000005>
14:50:39.484465 munmap(0x7f5961600000, 2097152) = 0 <0.000033>
14:50:39.484553 munmap(0x7f5961400000, 2097152) = 0 <0.000014>
14:50:39.484586 munmap(0x7f5961200000, 2097152) = 0 <0.000013>
14:50:39.484627 munmap(0x7f5961000000, 2097152) = 0 <0.000044>
14:50:39.484740 munmap(0x7f5960e00000, 2097152) = 0 <0.000034>
14:50:39.484835 munmap(0x7f5960c00000, 2097152) = 0 <0.000057>
14:50:39.484986 munmap(0x7f5960a00000, 2097152) = 0 <0.000033>
14:50:39.485071 munmap(0x7f5960800000, 2097152) = 0 <0.000037>
14:50:39.485171 munmap(0x7f5960600000, 2097152) = 0 <0.000036>
14:50:39.485266 munmap(0x7f5960400000, 2097152) = 0 <0.000024>
14:50:39.485372 munmap(0x7f5960200000, 2097152) = 0 <0.000021>
14:50:39.485423 close(1023)             = 0 <0.000040>
14:50:39.485520 close(1024)             = 0 <0.000021>
14:50:39.513202 close(1352)             = 0 <0.000032>
14:50:39.513270 close(1353)             = 0 <0.000035>
14:50:39.513525 sendto(8, "G\0\0\0\26UPDATE `user` SET `logout_t"..., 75, MSG_DONTWAIT, NULL, 0) = 75 <0.000026>
14:50:39.513617 poll([{fd=8, events=POLLIN|POLLERR|POLLHUP}], 1, 86400000) = 1 ([{fd=8, revents=POLLIN}]) <0.000164>
14:50:39.513840 recvfrom(8, "\f\0\0\1\0l\1\0\0\0\0\2\0\0\0\0\27\0\0\2\3def\0\0\0\1?\0\f?"..., 32768, MSG_DONTWAIT, NULL, NULL) = 79 <0.000043>
14:50:39.513994 sendto(8, "\5\0\0\0\31k\1\0\0", 9, MSG_DONTWAIT, NULL, 0) = 9 <0.000019>
14:50:39.514105 sendto(8, "#\0\0\0\27l\1\0\0\0\1\0\0\0\0\1\375\0\375\0\n1746255039\7"..., 39, MSG_DONTWAIT, NULL, 0) = 39 <0.000048>
14:50:39.514248 poll([{fd=8, events=POLLIN|POLLERR|POLLHUP}], 1, 86400000) = 1 ([{fd=8, revents=POLLIN}]) <0.000888>
14:50:39.515209 recvfrom(8, "\7\0\0\1\0\1\0\2\0\0\0", 32768, MSG_DONTWAIT, NULL, NULL) = 11 <0.000023>
14:50:39.515335 alarm(0)                = 24 <0.000016>
14:50:39.515413 epoll_wait(4, [{events=EPOLLIN, data={u32=5, u64=5}}, {events=EPOLLIN, data={u32=231, u64=231}}, {events=EPOLLIN, data={u32=233, u64=233}}, {events=EPOLLIN, data={u32=332, u64=332}}, {events=EPOLLIN, data={u32=330, u64=330}}, {events=EPOLLIN, data={u32=331, u64=331}}, {events=EPOLLIN, data={u32=333, u64=333}}, {events=EPOLLIN, data={u32=334, u64=334}}, {events=EPOLLIN, data={u32=335, u64=335}}, {events=EPOLLIN, data={u32=337, u64=337}}, {events=EPOLLIN, data={u32=336, u64=336}}, {events=EPOLLIN, data={u32=338, u64=338}}, {events=EPOLLIN, data={u32=339, u64=339}}, {events=EPOLLIN, data={u32=340, u64=340}}, {events=EPOLLIN, data={u32=341, u64=341}}, {events=EPOLLIN, data={u32=342, u64=342}}, {events=EPOLLIN, data={u32=345, u64=345}}, {events=EPOLLIN, data={u32=343, u64=343}}, {events=EPOLLIN, data={u32=344, u64=344}}, {events=EPOLLIN, data={u32=346, u64=346}}, {events=EPOLLIN, data={u32=348, u64=348}}, {events=EPOLLIN, data={u32=347, u64=347}}, {events=EPOLLIN, data={u32=350, u64=350}}, {events=EPOLLIN, data={u32=349, u64=349}}, {events=EPOLLIN, data={u32=351, u64=351}}, {events=EPOLLIN, data={u32=352, u64=352}}, {events=EPOLLIN, data={u32=353, u64=353}}, {events=EPOLLIN, data={u32=355, u64=355}}, {events=EPOLLIN, data={u32=354, u64=354}}, {events=EPOLLIN, data={u32=356, u64=356}}, {events=EPOLLIN, data={u32=358, u64=358}}, {events=EPOLLIN, data={u32=357, u64=357}}, ...], 1024, 626) = 196 <0.000128>
14:50:39.515663 read(5, "\f\f\f\f\f\f", 1024) = 6 <0.000022>
14:50:39.515733 read(5, 0x7f597c37a340, 1024) = -1 EAGAIN (Resource temporarily unavailable) <0.000030>
14:50:39.515830 recvfrom(231, "\0\0\0L\3\n\7\17\340u\311\n\7\t\305\213J\0\0\1\206\1\313\210\0\0\0\32a:1:"..., 65535, 0, NULL, NULL) = 152 <0.000018>
14:50:39.515950 alarm(30)               = 0 <0.000015>
14:50:39.516009 write(1, "[2025-05-03 14:50:39]{\"event\":\"w"..., 44) = 44 <0.000018>

 275  4 1

4個回答

Wakada 2025-05-03

后面停用status -d ，使用 strace -p -o > xx.log 的方式觀察，記錄停頓時間，同時查看 status，發現是busy，幾次基本都是這個片段select卡住，請問這timeout是什么情況

15:30:15.776606 close(1022)             = 0 <0.000028>
15:30:15.776759 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = ? ERESTARTNOHAND (To be restarted if no handler) <1.630117>
15:30:17.407135 --- SIGUSR2 {si_signo=SIGUSR2, si_code=SI_USER, si_pid=3285, si_uid=1000} ---
15:30:17.407220 write(6, "\f", 1)       = 1 <0.000020>
15:30:17.407287 rt_sigreturn({mask=[]}) = -1 EINTR (Interrupted system call) <0.000012>
15:30:17.407410 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = 0 (Timeout) <5.005080>
15:30:22.413499 close(1024)             = 0 <0.000059>
15:30:22.413645 close(1025)             = 0 <0.000044>

暫無評論

Wakada 2025-05-03

觀察后，補充個現象：

目前是7臺Gateway，每臺96進程，每臺Worker服務的單進程需要打開672連接，連上每臺gateway的端口；

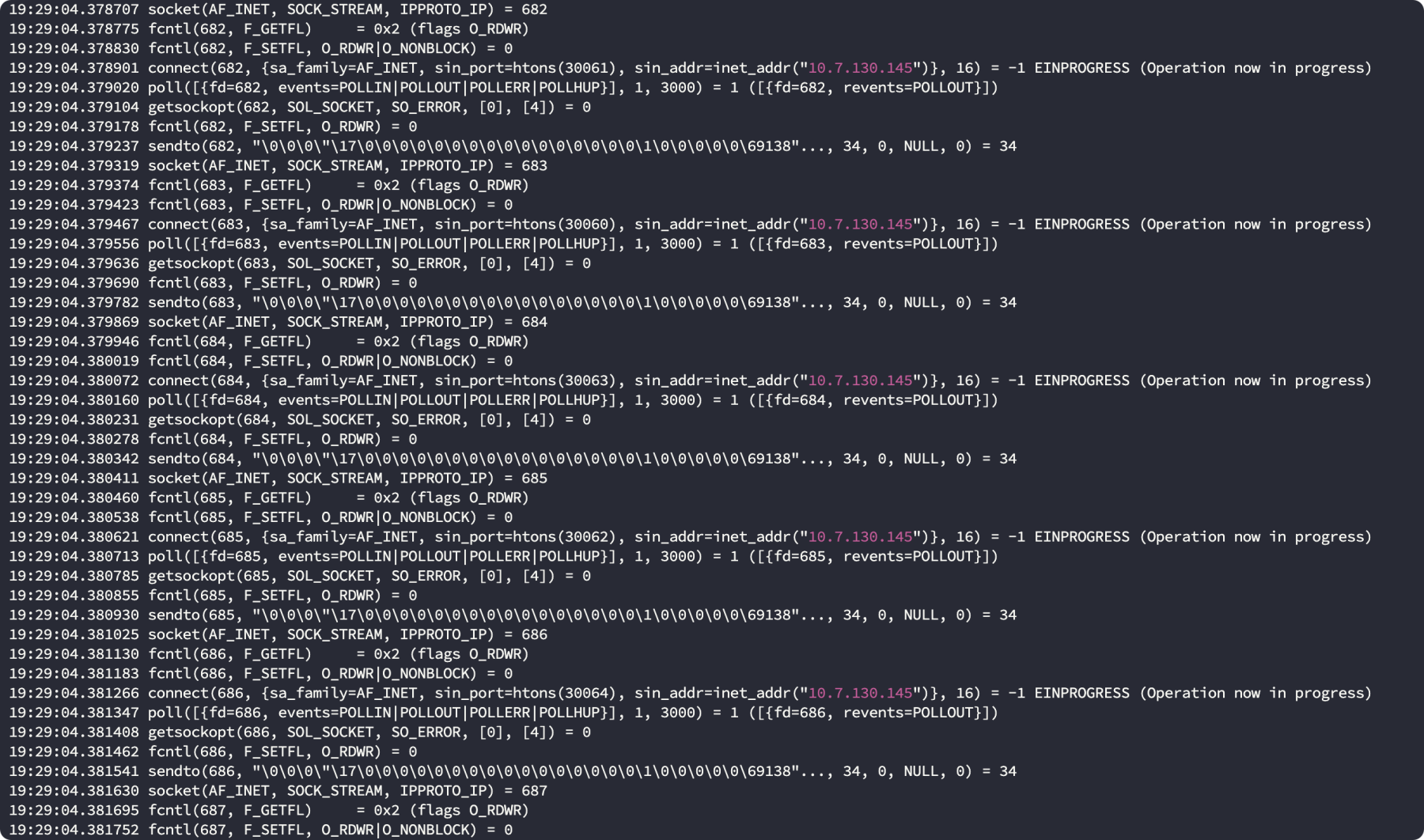

觀察期間的strace（截取片段），發現有周期性的再次打開新的672個連接（對應strace日志的端口數量1353，數量接近），而后又close掉這些剛剛打開的新鏈接，這期間就會產生busy；

17:07:14.133450 fcntl(1352, F_GETFL)    = 0x2 (flags O_RDWR) <0.000013>
17:07:14.133493 fcntl(1352, F_SETFL, O_RDWR|O_NONBLOCK) = 0 <0.000023>
17:07:14.133581 connect(1352, {sa_family=AF_INET, sin_port=htons(30139), sin_addr=inet_addr("10.7.113.155")}, 16) = -1 EINPROGRESS (Operation now in progress) <0.000024>
17:07:14.133655 poll([{fd=1352, events=POLLIN|POLLOUT|POLLERR|POLLHUP}], 1, 3000) = 1 ([{fd=1352, revents=POLLOUT}]) <0.000023>
17:07:14.133742 getsockopt(1352, SOL_SOCKET, SO_ERROR, [0], [4]) = 0 <0.000024>
17:07:14.133813 fcntl(1352, F_SETFL, O_RDWR) = 0 <0.000021>
17:07:14.133898 sendto(1352, "\0\0\0#\17\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\1\0\0\0\0\0\0077979"..., 35, 0, NULL, 0) = 35 <0.000071>
17:07:14.134023 socket(AF_INET, SOCK_STREAM, IPPROTO_IP) = 1353 <0.000030>
17:07:14.134090 fcntl(1353, F_GETFL)    = 0x2 (flags O_RDWR) <0.000020>
17:07:14.134155 fcntl(1353, F_SETFL, O_RDWR|O_NONBLOCK) = 0 <0.000017>
17:07:14.134202 connect(1353, {sa_family=AF_INET, sin_port=htons(30155), sin_addr=inet_addr("10.7.113.155")}, 16) = -1 EINPROGRESS (Operation now in progress) <0.000042>
17:07:14.134293 poll([{fd=1353, events=POLLIN|POLLOUT|POLLERR|POLLHUP}], 1, 3000) = 1 ([{fd=1353, revents=POLLOUT}]) <0.000027>
17:07:14.134365 getsockopt(1353, SOL_SOCKET, SO_ERROR, [0], [4]) = 0 <0.000014>
17:07:14.134443 fcntl(1353, F_SETFL, O_RDWR) = 0 <0.000019>

跳過..

17:07:19.695366 close(1347)             = 0 <0.000030>
17:07:19.695442 close(1348)             = 0 <0.000021>
17:07:19.695489 close(1349)             = 0 <0.000032>
17:07:19.695549 close(1350)             = 0 <0.000031>
17:07:19.695611 close(1351)             = 0 <0.000025>
17:07:19.695658 close(1352)             = 0 <0.000022>
17:07:19.695717 close(1353)             = 0 <0.000042>

暫無評論

Wakada 2025-05-03

問題大致可以定位到這，正常是681u，不清楚是內部機制還是什么問題，導致進程打開新的鏈接（超過定義的數量）

暫無評論

walkor 2025-05-04

打賞

你們整個集群gateway進程太多了，導致集群內部出現大量?jī)?nèi)部通訊，影響了性能。
安裝event擴展并優化linux內核后，每個gateway進程能輕松處理支持1-3萬的連接。所以要預估好整個系統支持的并發量，設置合理的gateway進程數。比如10萬連接，整個集群(注意是整個集群)的geteway進程設置為4-6個gateway進程就好了，多了反而影響性能。

我們有一個物聯網系統，大概用了3臺4核4G服務器支撐了10萬的在線，整個系統負載還極低。

所以你們系統用7臺32核跑Gateway進程太浪費了，每臺96 Gateway進程太離譜了。
你們可以通過以下策略設置服務器數Gateway進程數，假設前期預期最高4萬在線，就使用一臺2核2G服務器設置2個Gateway進程數，以后每增加4萬在線就增加一臺2核2G 2gateway進程的gateway服務器。這樣可以做到隨時擴容，性能又好?？傮w原則，gateway進程夠用就行，不要開多了。

Worker服務器和進程數看業務情況，一般配置成CPU*4即可，例如16核配置成64個進程。

Wakada 2025-05-04

追蹤Worker的busy進程經常會發生：
10:24:35.955020 select(1024, [], [], [], {tv_sec=5, tv_usec=0}) = 0 (Timeout)

也是因?yàn)間ateway太多導致么？
walkor 2025-05-04

有可能
walkor 2025-05-04

另外你的php版本也有問題，7.4.1，小版本號是1，這說明是php7.4的第一個版本。不要用小版本號太小的PHP版本，小版本號越低，PHP自身的bug越多。用成熟的版本，例如7.4.33
Wakada 2025-05-06

感謝大佬，調整gateway集群和進程數后正常了
鄔綵唔惪 2025-05-06

老大，一個gateway進程維護2萬個鏈接，如果是消息交互比較頻繁的應用的話，這種是直接升級服務器配置，按一核一個gateway，還是直接增加一臺2核2G 2gateway進程的gateway服務器呢？
walkor 2025-05-06

理論上都可以。
如果升級服務器配置需要重啟gateway，那么數萬個客戶端一起重連可能會導致系統過載，所以動態加服務器好一些。
